Concrete Scanning

D-Drill & Sawing providing 2D and 3D concrete scanning.

We are at the forefront of the analysis of steel reinforcement in reinforced concrete structures.

With our innovative portable and fast 2D and 3D scanner we can detect and measure the depth of cover, diameter and positioning of reinforcing bars over a wide area.

The concrete cover and rebar diameter estimation element is best performed with pulsed magnetic induction technology – we use the best tools for the job.

KEY BENEFITS OF THIS SERVICE:

  • Locating services, rebars, tendons, conduits and concrete structures at depths of up to 200mm
  • Avoiding hitting concealed objects, rebar and services when drilling or sawing
  • Quality assessment and checking rebar and tendon layout (e.g. curvature, density, depth)
  • Inspection of floors, decks, slabs, balconies, etc in structures such as tunnels, bridges and buildings
  • 2D and 3D imaging and reporting
  • We use the most productive tools on the market to produce the quality scans you need
  • Small lightweight equipment can be used in the smallest of areas and spaces

Once your scan survey is completed and the steel rebar is located we are able to drill or cut whilst still on site

WE CAN:

  • Quick scan operation can locate rebar, this can be marked out immediately on the slab as the scanning progresses to give instant information
  • Provide a real-time view of the inside of concrete structures and generates true images automatically, for direct on-site evaluation of scan data
  • Show a top view of the scan for easy mapping of the objects detected plus cross sections in both directions for easy identification of multiple layers in concrete structures
  • Written reports including 2D and 3D picture reporting can be given within a few working days
  • Greatly reduce risks by locating the safest places to cut or drill.

Do you have a concrete scanning job in mind?

Call us on 0800 33 74 55 to find out more.

Request a Quote




Explore Our Services

Interact with the buttons below to see all of our services.






"I would just like to say that your operative that came to the University of Leeds yesterday to commence with the 4nr core holes was a pleasure to have. He was very professional/ persistent and completed the works in hand. Thanks again."


University of Leeds - Site Supervisor

"2 of your employees, Paul Green and Graham Crowley, completed the drilling project on the Pendine Long Test Track with us today. I’d like to let you know that they carried out their work professionally, effectively and safely. They have done an excellent job within the timeline of the contract and they were a pleasure to have on site."


MOD - Pendine Long Test Track

"Thank you for sorting the holes out for me, your guy was an absolute pleasure."


John Holcroft - Owner of San Giovanni restaurant

"D-Drill carried out the works here in a very safe and controlled manner for the whole time, the workmanship and care they took for the task of cutting down existing culverts and drilling out core holes was brilliant. The client commented several times on this also."


Trant Engineering Limited - Site Manager

"The lads that attended site for us at Kings Lynn were fantastic, both us at TEi and Centrica were impressed with their professionalism, and just how quickly they removed all four of the plinths"


TEI Ltd - Supervisor

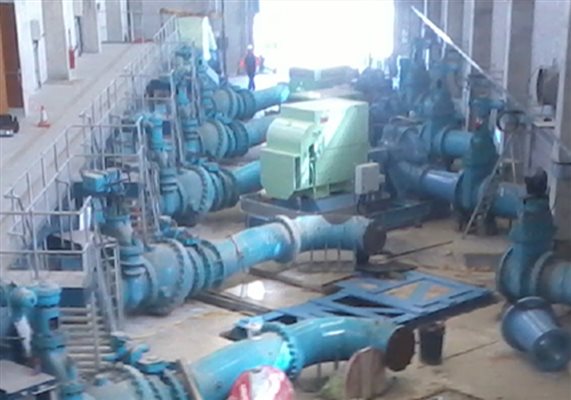

Nantgaredig Intake Works

Complex waterworks job highlights D-Drill’s scanning and cutting expertise Engineers at a South Wales diamond drilling and concrete sawing firm have completed a major project at a key water management site in Carmarthenshire – from scanning to cutting. Skilled operatives from the Bridgend office of D-Drill removed three large concrete plinths from the Nantgaredig Intake Works to allow for three brand new water pumps to be installed. The firm used specialist 3D scanning equipment to scope out the job before undertaking the removal of the concrete. Special harness equipment had to worn during the scanning process due to the limited access. D-Drill, working with main contractor IPP Contracting, Welsh Water and Celtic Process Control, then removed each of the 4.6m x 2.2m x 500mm plinths over the course of four days. Due to the size of the plinths and the tight working conditions, the plinths were cut into smaller 1.1m x 400mm x 430mm blocks to allow for the removal. And,...

View Project




  • With over 55 years’ experience serving the construction industry, we are safe, accurate and reliable
  • A one-stop-shop for all your concrete scanning, drilling, sawing and demolition needs
  • Nationwide coverage with an extensive branch network using local in-house trained teams
  • Rapid response from our expert teams who take a professional, flexible approach to projects
  • We are constantly innovating, backed by pioneering ground-breaking research
  • We use the latest low-impact environmentally friendly equipment and strive to save time, money and the environment
  • Our work exceeds the Drilling & Sawing Association’s minimum standards
  • Supporting and investing in the construction industry, our MD serves on many national and internal boards
  • We invest heavily in training, particularly in apprentices; over 45% of our skilled workforce have been through our apprenticeship programme
